PC Windows

NAS File Server Connection: 2 steps for Windows PC

1. Check the network parameter
   • fixed
   • DHCP
2. Connect

• Help

Check the fixed network parameter

Beforehand, ensure that the following conditions are met :
DNS Active Directory (128.178.15.227, 128.178.15.228) + WINS (128.178.15.44)

1. 1. Right-click on “My Network places”, select “Properites”
   2. Right-click on “Local Area Conncection”, select “Properties”
   3. Double-click on the “Internet Protocol (TCP-IP)
      • Click the “Adanced” button:
        • select the “WINS” tab
        • click the “Add” button and in “WINS Server” type: 128.178.15.44
        • delete existing WINS Server Address, 128.178.1.44, as it is not necessary for the future.

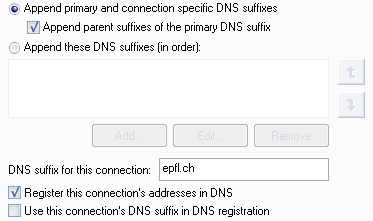

        • Click on “DNS” and add the suffix, epfl.ch


If you use EPFL DHCP (Wifi EPFL or DHCP fixed network)

All IP parameters are correct (provided by DIT-TI)

Connect

• Map Network Drive “J” (example)

1. 1. Double-click «My Computer»
   2. Select on the menu bar «Tools»
   3. Richt-click on «Map Network Drive»

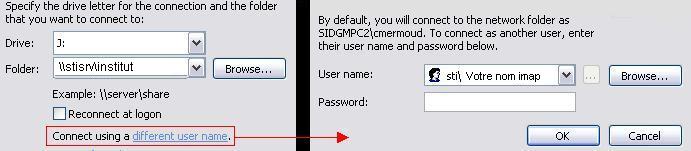

      This opens the “Map Network Drive” applet:

   • Drive:
     choose a letter
   • Folder: institute and laboratoy are the unit acronym.
     • Institute
       \\stisrv.epfl.ch\institute
     • Laboratory
       \\sti1files.epfl.ch\laboratory
   • Right-click on “different user name“As User name type: INTRANET\nomimap & as Password: your Gaspar Password.

   • to confirm click on the “ok” button & validate with the “Finish” button.

Help

Laurent Kling 33511

David Desscan 34633
