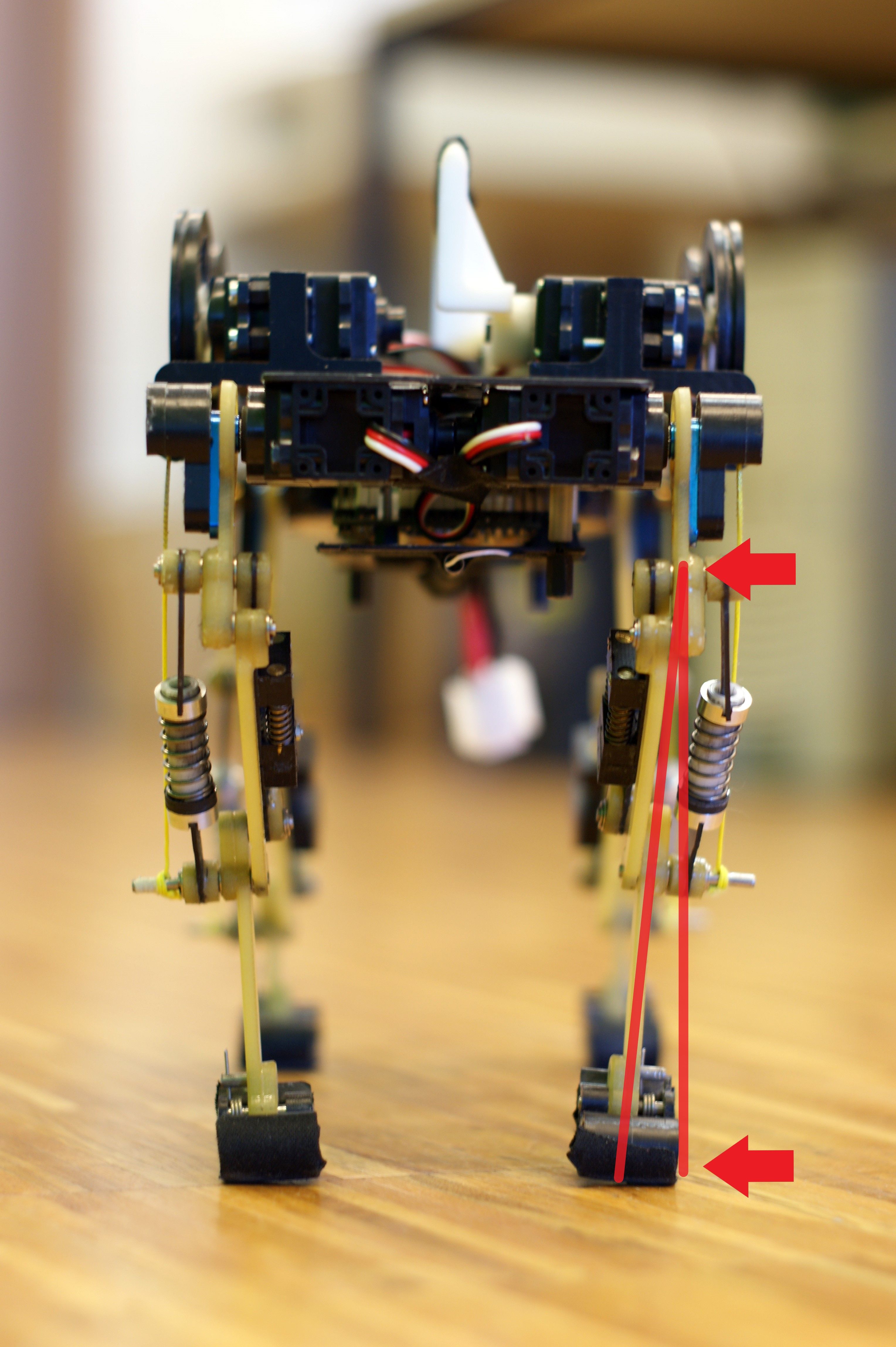

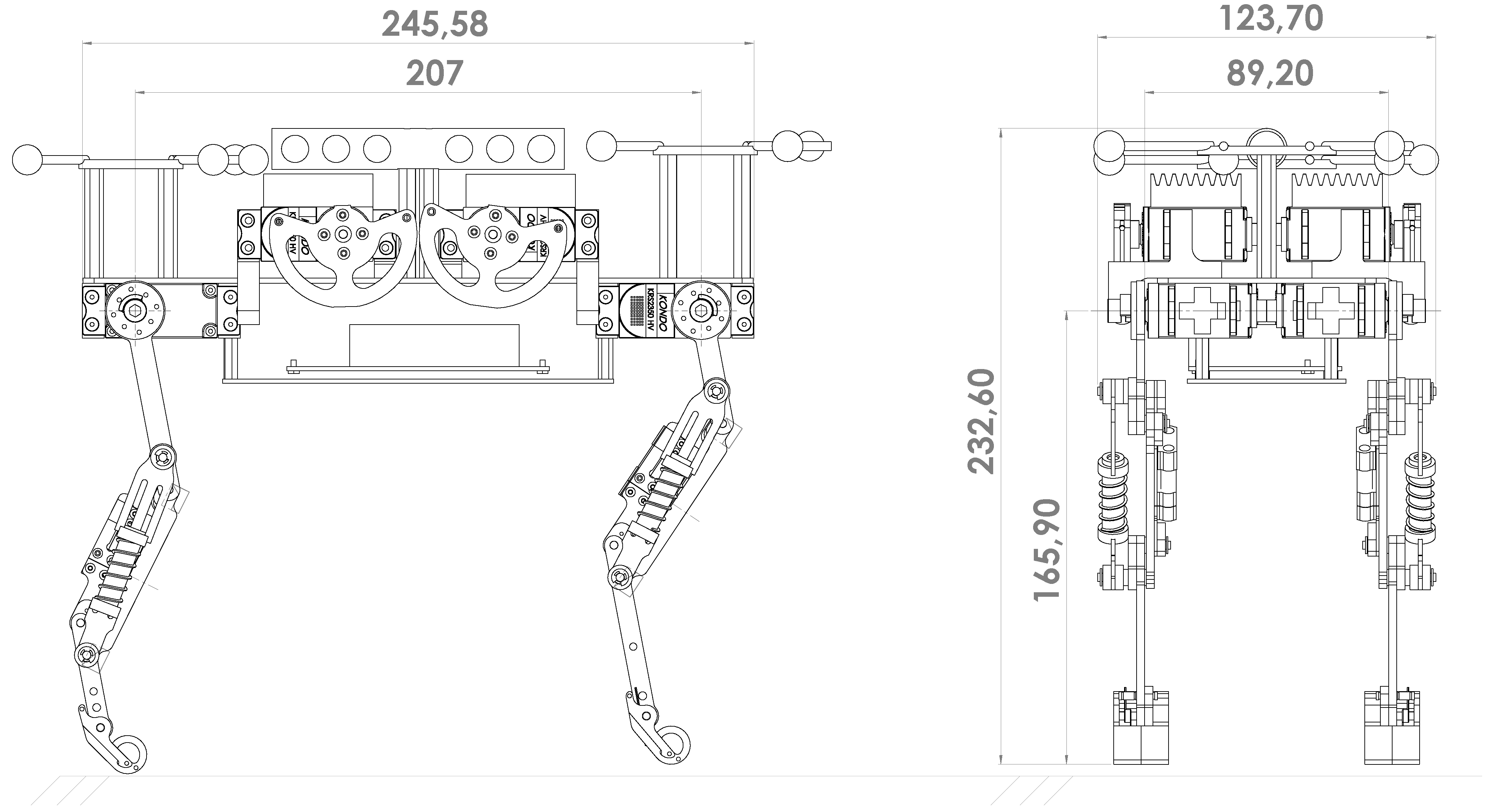

Cheetah-cub is a quadruped robot with advanced spring loaded pantographic legs, developed at the BIOROB-laboratory by Spröwitz and Vespignani . Its actuation consists of 8 Kondo KRS2350 ICS, which are positioned on the robot’s stiff trunk and are powered, through a cable connection, by a DC power supply. Thematerials used are mostly CNC milled carbon and glass fiber plates, CNC milled POM and 3D printed ABS parts. This material combination makes the robot very robust and at the same time very lightweight (m=1.1kg ). A RB110 control board with Linux installed as the operating system runs the pre-defined CPG network as an open loop control (no sensors on the robot). Cheetah-cub can reach fast forward locomotion of 6.9Bl/s and can do step downs of 20% of its leg length with high success rate. Additional tests showed also turning capability in low speeds.
Embed of video is only possible from Mediaspace, SwitchTube, Vimeo or Youtube
On Designing An Active Tail For Body-Pitch Control In Legged Robots Via Decoupling Of Control Objectives2016. 18th Climbing and Walking Robots Conference (CLAWAR), Hangzhou, PEOPLES R CHINA, SEP 06-09, 2015. p. 256-264. DOI : 10.1142/9789814725248_0033.
Cheetah-cub-S: Steering of a Quadruped Robot using Trunk MotionAMAM 2015, Camebridge, Massachusetts, USA, June 21 – 25, 2015.
Data-driven extraction of drive functions for legged locomotion: A study on Cheetah-cub robot6th International Conference on Adaptive Motion of Animals and Machines, 2013, Darmstadt, Germany, March 11-14, 2013.
Feel free to use pictures and movies without prior permission, provided they are credited as follows: Biorobotics Laboratory, EPFL. Please contact us by email at massimo.vespignani at epfl.ch or auke.ijspeert at epfl.ch if you would like additional information or higher resolution videos.
